National Item Identification Number
01-122-4477
011224477
5365-01-122-4477
5365011224477
National Stock Number
Item Name
SHIM
Federal Supply Class
5365

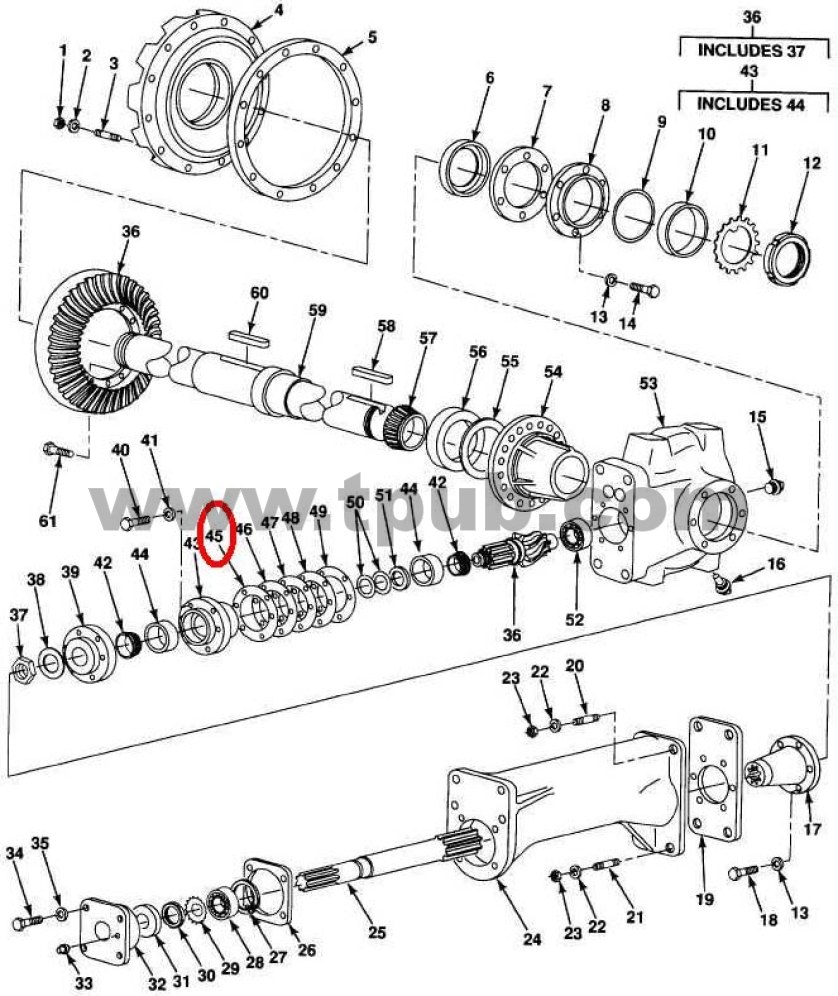

Referenced on: http://constructionmixers.tpub.com//TM-5-3895-369-24P/css/TM-5-3895-369-24P_384.htm
Referenced on: http://constructionmixers.tpub.com//TM-5-3895-369-24P/css/TM-5-3895-369-24P_448.htm
Referenced on: http://constructionmixers.tpub.com//TM-5-3895-369-24P/css/TM-5-3895-369-24P_505.htmDescription
A thin flat metal or plastic item of various peripheral shapes having a solid or laminated cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole and having a solid rectangular cross-section use DISK, SOLID, PLAIN. Items with either (1) a solid (not laminated) cross-section, or (2) a non-separable laminated cross-section with one hole centrally located, must have a thickness less than 0.006 inch (0.152 mm) for items less than 1/4 inch (6.35 mm) outside diameter or shortest distance across peripheral flats, and less than 0.016 inch (0.406 mm) for items 1/4 inch (6.35 mm) or more outside diameter, or shortest distance across peripheral flats. For items with thickness greater than those indicated above, see SPACER, PLATE; WASHER, FLAT and SPACER, RING. When thickness and/or outside diameter or shortest distance across peripheral flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance. See also SHIM STOCK, LAMINATED; SHIM STOCK ASSORTMENT, GASKET; and BEARING, WASHER, THRUST.
Commercial and Government Entity Code (Supplier Data)
52304
EATON CORP
DEFENSE PRODUCT MARKETING
13100 E MICHIGAN AVE
GALESBURG
MI
49053
269-342-3000
81142
EATON CORP AXLE DIV
739 E 140TH ST
CLEVELAND
OH
44110
216-523-5000
NSN (National Stock Number) 5365-01-122-4477, 5365011224477 NIIN (National Identification Number) 01-122-4477, 011224477
Part Numbers (Reference Numbers)
75968
75968
Required Categories
MATERIAL
CONSTRUCTION
BOLT HOLE QUANTITY
STYLE DESIGNATOR
HOLE DIAMETER
BOL
Required Description
STEEL
ONE-PIECE
6
A21 CIRCULAR
0.593 INCHES NOMINAL
5.625 INCHES NOMINAL
6
