National Item Identification Number
01-432-4928
014324928
5365-01-432-4928
5365014324928
National Stock Number
Item Name
SHIM
Federal Supply Class
5365

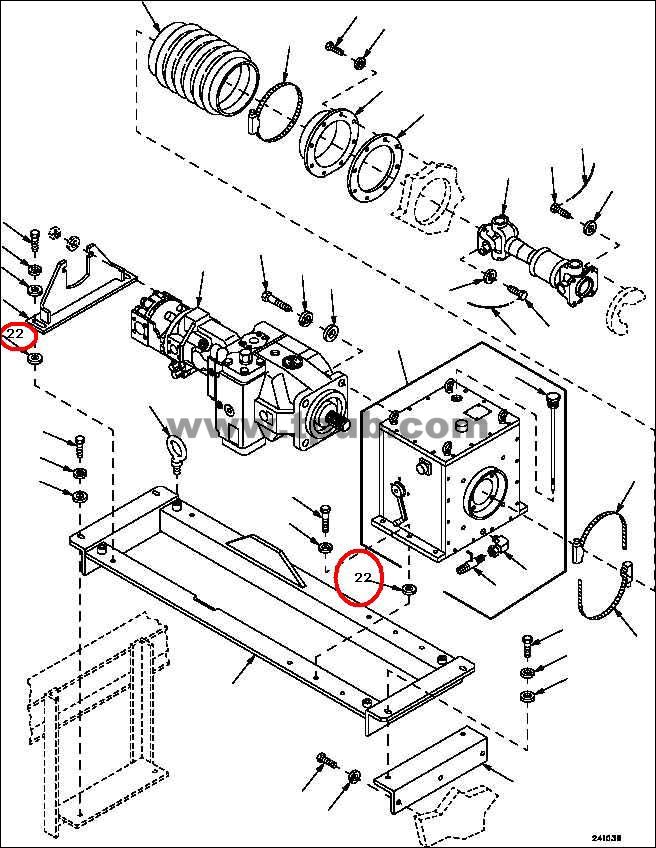

Referenced on: http://recoveryvehicles.tpub.com//TM-9-2350-292-24P/css/TM-9-2350-292-24P_1101.htm
Referenced on: http://recoveryvehicles.tpub.com//TM-9-2350-292-24P/css/TM-9-2350-292-24P_1500.htm
Referenced on: http://recoveryvehicles.tpub.com//TM-9-2350-292-24P/css/TM-9-2350-292-24P_965.htmDescription
A thin flat metal or plastic item of various peripheral shapes having a solid or laminated cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole and having a solid rectangular cross-section use DISK, SOLID, PLAIN. Items with either (1) a solid (not laminated) cross-section, or (2) a non-separable laminated cross-section with one hole centrally located, must have a thickness less than 0.006 inch (0.152 mm) for items less than 1/4 inch (6.35 mm) outside diameter or shortest distance across peripheral flats, and less than 0.016 inch (0.406 mm) for items 1/4 inch (6.35 mm) or more outside diameter, or shortest distance across peripheral flats. For items with thickness greater than those indicated above, see SPACER, PLATE; WASHER, FLAT and SPACER, RING. When thickness and/or outside diameter or shortest distance across peripheral flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance. See also SHIM STOCK, LAMINATED; SHIM STOCK ASSORTMENT, GASKET; and BEARING, WASHER, THRUST.
Commercial and Government Entity Code (Supplier Data)
NSN (National Stock Number) 5365-01-432-4928, 5365014324928 NIIN (National Identification Number) 01-432-4928, 014324928
Part Numbers (Reference Numbers)
A-A-59561
A-A-59561-40173
MIL-S-70334/1
M70334/1-0173D
Required Categories
MATERIAL
SURFACE TREATMENT
CONSTRUCTION
OVERALL THICKNESS
STYLE DESIGNATOR;
Required Description
STEEL CORROSION RESISTING
CADMIUM
ONE-PIECE
0.015 INCHES MINIMUM AND
0.016 I
