National Item Identification Number

01-479-8409
014798409
5365-01-479-8409
5365014798409

National Stock Number

Item Name

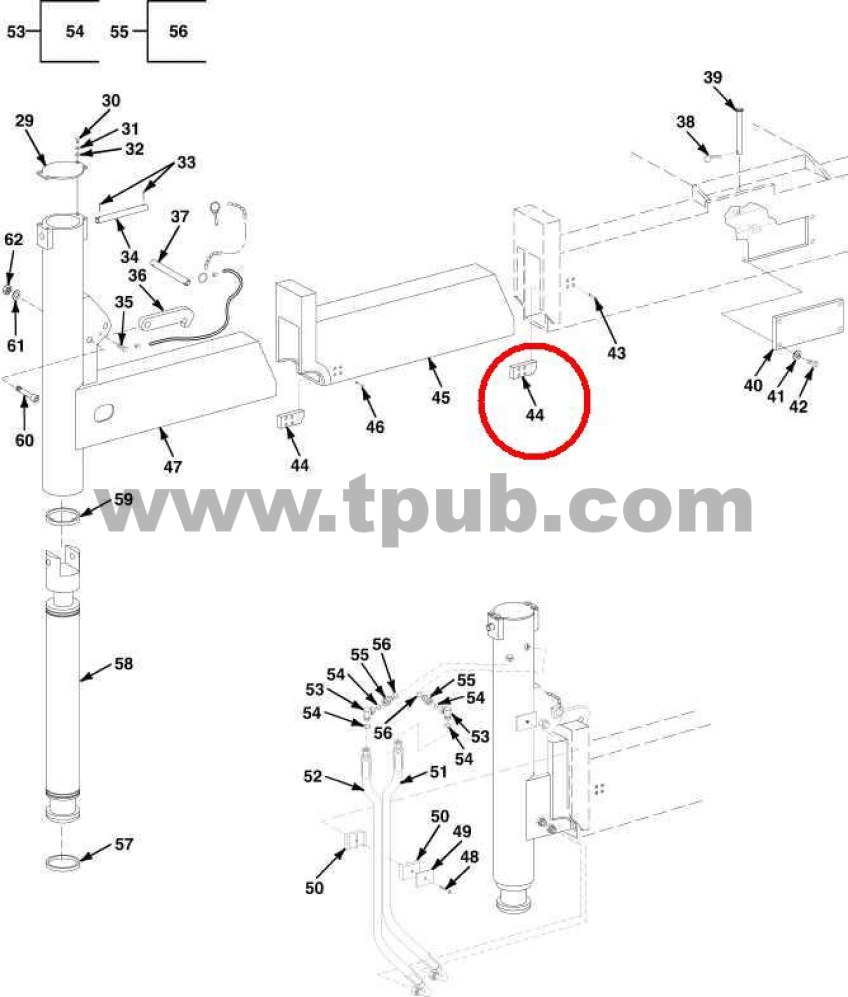

SPACER,PLATE

Federal Supply Class

5365

Referenced on: http://constructionmisc.tpub.com//TM-9-4940-568-24P/css/TM-9-4940-568-24P_149.htm
Referenced on: http://constructionmisc.tpub.com//TM-9-4940-568-24P/css/TM-9-4940-568-24P_465.htm
Referenced on: http://constructionmisc.tpub.com//TM-9-4940-568-24P/css/TM-9-4940-568-24P_507.htm

Description

A flat metal or plastic item of various peripheral shapes having a solid (not laminated) cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole having a solid rectangular cross-section use DISK, SOLID, PLAIN. For round or hexagonal items with only one hole centrally located and with the length (thickness) exceeding 25 percent of the outside diameter or distance across peripheral flats, see SPACER, SLEEVE. The thickness between the two parallel bearing surfaces must be 0.006 inch, (0.152 mm) or more for items less than 1/4 inch (6.35 mm) across the peripheral diameter, or smallest overall outside dimension, or must be 0.016 inch (0.406 mm) or more for items 1/4 inch (6.35 mm) or greater across the peripheral diameter or smallest overall outside dimension. For items with a thickness less than those indicated above, see SHIM. For items with one hole centrally located conforming to the above dimensional criteria use WASHER, FLAT or SPACER, RING as applicable. When thickness and/or outside diameter or smallest overall outside dimension is designated as a tolerance/dimension the maximum dimension will be used to determine compliance. Excludes GASKET; INSULATOR (as modified) and MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT.

Commercial and Government Entity Code (Supplier Data)

---

12361

---

GROVE U.S. L.L.C.
1565 BUCHANAN TRAIL EAST
21
SHADY GROVE
PA
17256
717-593-5926

---

NSN (National Stock Number) 5365-01-479-8409, 5365014798409 NIIN (National Identification Number) 01-479-8409, 014798409

Part Numbers (Reference Numbers)

6-705-170389

Required Categories

OVERALL THICKNESS
STYLE DESIGNATOR
HOLE DIAMETER
OVERALL LENGTH
OVERALL WIDT

Required Description

0.310 INCHES NOMINAL
A16A NON-CIRCULAR W/SQUARE CORNERS
0.312 INCHES NOMINAL;
